• Country
• Italy

• Manufacturer / Brand
• Raytron, Rajmar; Milano

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235943

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

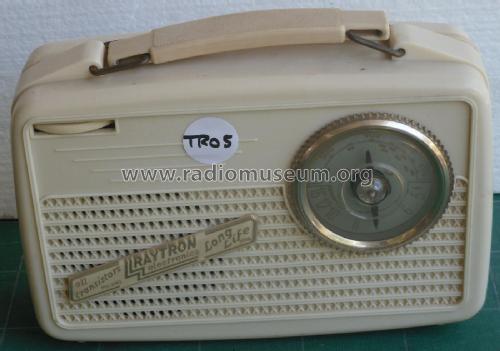

• Model: Long Life - All Transistor - Raytron, Rajmar; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 145 x 55 mm / 8.7 x 5.7 x 2.2 inch

• Author
• Model page created by Marino Ciullo. See "Data change" for further contributors.

• Other Models

• Here you find 26 models, 22 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Raytron, Rajmar; Milano
