• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53072
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / See Notes Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

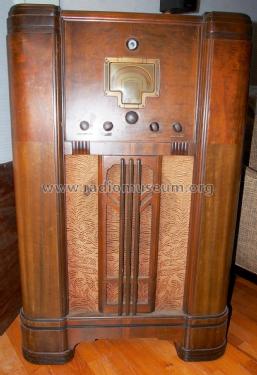

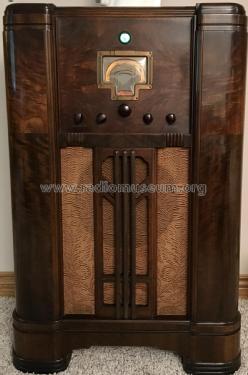

  • Model: 10K - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 27 x 41 x 14.75 inch / 686 x 1041 x 375 mm
  • Notes
  • 5 bands up to 60000 kc.
    This model uses the same chassis as model 10T.
    This model has 3 power supply ratings:
    Rating A...105-125V, 50-60 Cycles
    Rating B...105-125V, 25-60 Cycles
    Rating C...100-130; 140-160; 195-250V, 40-60 Cycles
  • Net weight (2.2 lb = 1 kg)
  • 86 lb (86 lb 0 oz) / 39.044 kg
  • Price in first year of sale
  • 150.00 USD
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
