• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 323282

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6D6 6A7 6D6 75 76 42 42 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

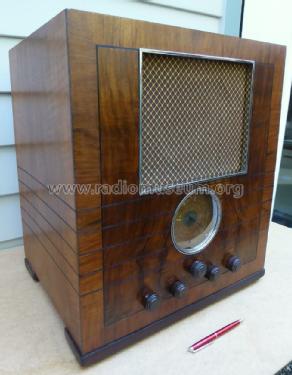

• Model: 143 [square cabinet] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• See other model 143 with rounded top.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Author
• Model page created by David Erali. See "Data change" for further contributors.
