Portable Television 14-S-7070 G Ch= KCS102B

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 161398

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

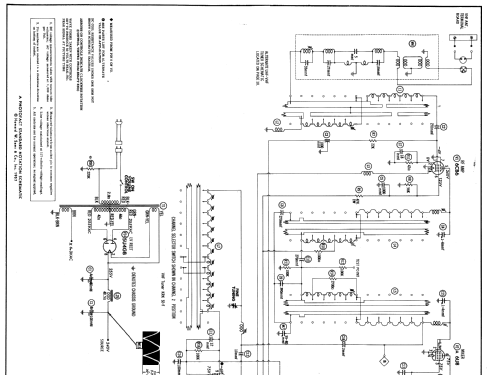

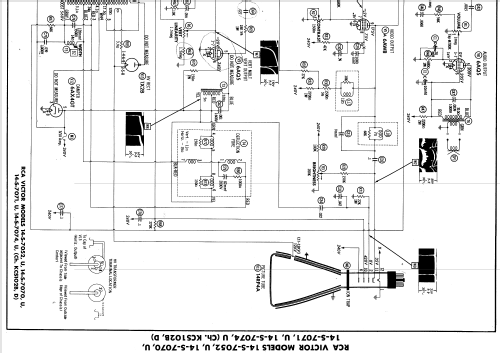

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6CB6 6U8 6CH8 6CH8 6AW8 6AU6 6DT8 6AQ5 6AQ5 6CG7 6DQ6A 6AX4GT 1X2B 5U4GB 14RP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Portable Television 14-S-7070 G Ch= KCS102B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

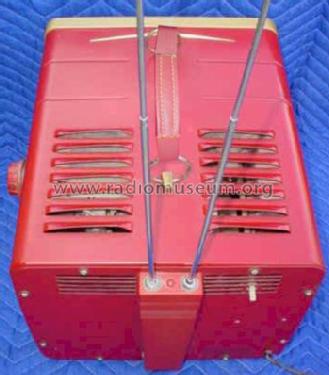

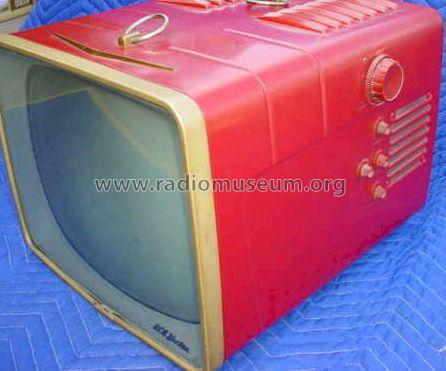

• The RCA 14-S-7070 is a 14" B/W TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis KCS102B and picture tube 14RP4A.

  We believe that the suffix "G" is for this cabinet but this is not noted on the SAMS photofact, so the model 14-S-7070 is technically the same as model 14-S-7070G.

• Mentioned in

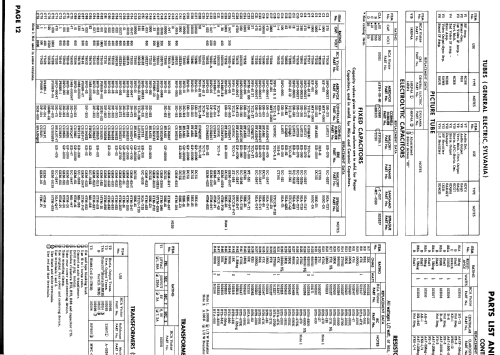

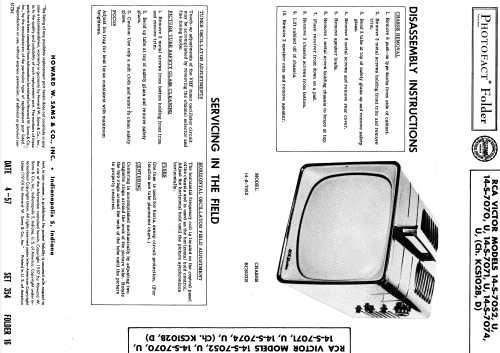

• Photofact Folder, Howard W. SAMS (Set 354, Folder 16, Date 4-57)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
