16X14 Ch= RC-1000B

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53170

• • alternative name: RCA Manufacturing || Victor Talking Machine

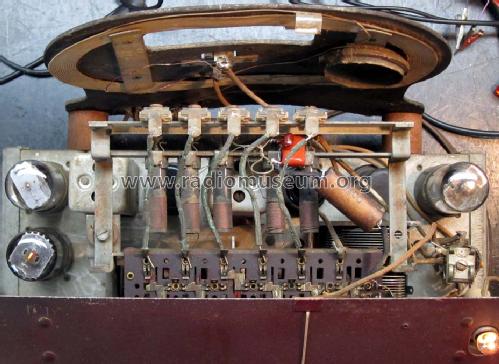

• Picture

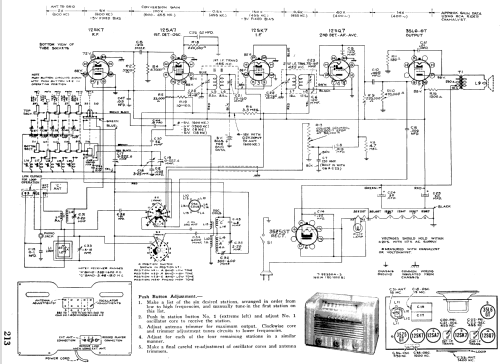

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.9 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 16X14 Ch= RC-1000B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 15 x 9.5 x 7 inch / 381 x 241 x 178 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
