17-S-6025U Ch= KCS94A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 277443
-
- alternative name: RCA Manufacturing || Victor Talking Machine

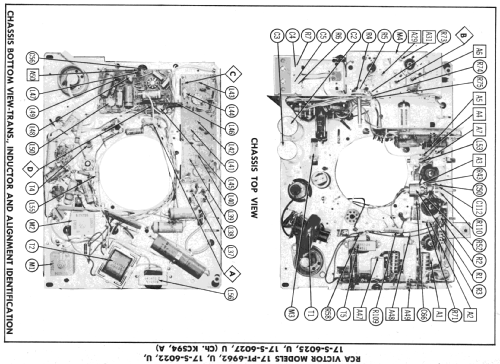

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 4BQ7A 2AF4 or 2AF4A 5X8 3CF6 3CB6 5AS8 6AW8 5U8 3AL5 5AQ5 6CG7 5AQ5 6CG7 12BQ6GTB or 12CU6 12AX4GTA 1X2B 17AVP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 17-S-6025U Ch= KCS94A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
THE RCA VICTOR model 17-S-6025U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF Tuner KRK29A, UHF tuner KRK36A, chassis KCS94A and picture tube 17AVP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 315 Folder 9)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 334 Folder 1 dated 10-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
