17-S-7093U Ch= 5378
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 315659
-
- alternative name: RCA Manufacturing || Victor Talking Machine

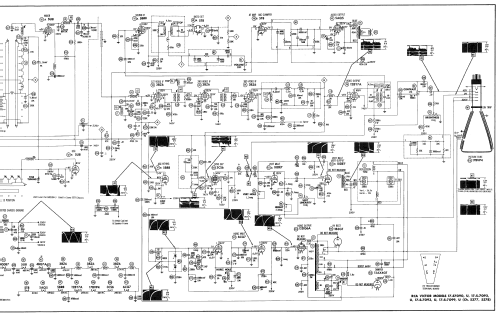

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 2AF4A 4BQ7A 5U8 or 5AT8 3BZ6 3BZ6 3BZ6 12BY7A 5BR8 5T8 5AQ5 3CS6 10DE7 6CG7 12DQ6A 12AX4GT 1B3GT 17BVP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 17-S-7093U Ch= 5378 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-

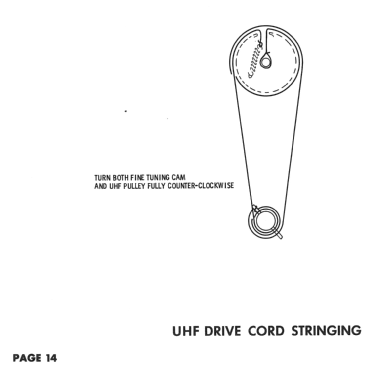

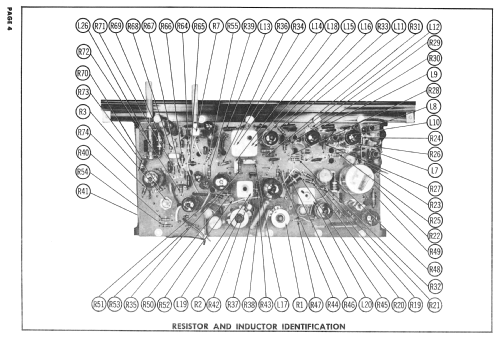

RCA VICTOR model 17-S-7093U is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 5378, VHF- tuner 95604-3, UHF- tuner 93870-5 and picture tube 17BVP4.
- Literature/Schematics (1)

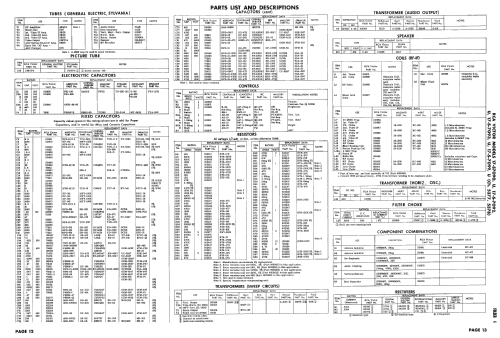

- Photofact Folder, Howard W. SAMS (Set 375 Folder 4 dated 10-57)
