17PD8099 Ch= KCS109C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 314548
-
- alternative name: RCA Manufacturing || Victor Talking Machine

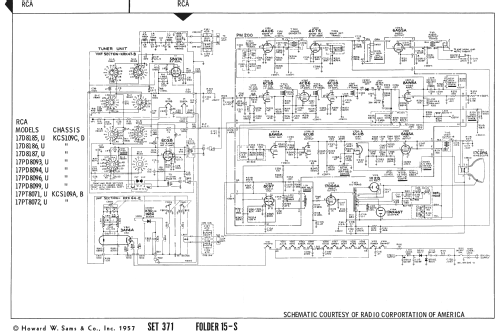

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes

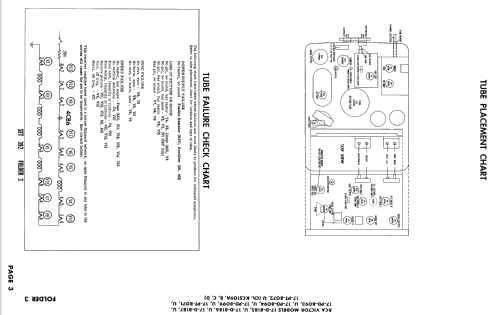

- 5BQ7A 6CQ8 4AU6 4DT6 6AQ5A 6CU8 4CB6 6CU8 6AW8A 6AQ5A 6CG7 17DQ6A 1X2B 17AX4GT 17CDP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 17PD8099 Ch= KCS109C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-

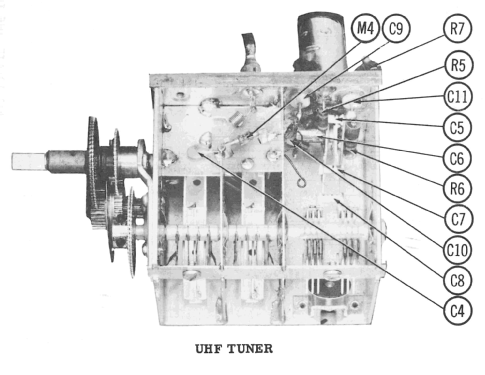

RCA model 17PD8099 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS109C, VHF tuner KRK-47-B and picture tube 17CDP4.
- Literature/Schematics (1)
- Photofact CB Radio Manual, SAMS (Se 371 Folder 15-S dated 1957)
- Literature/Schematics (2)

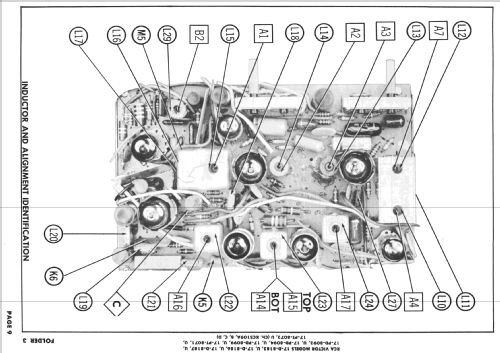

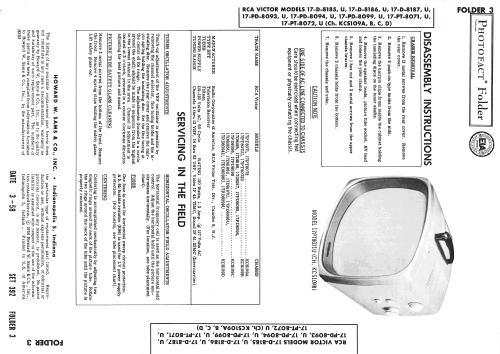

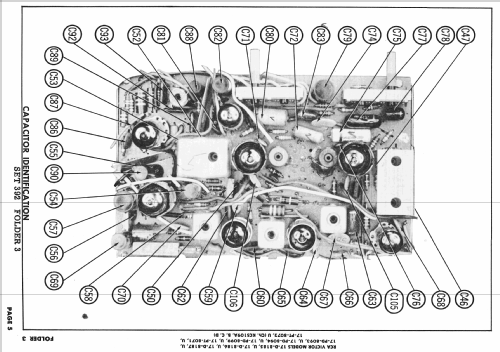

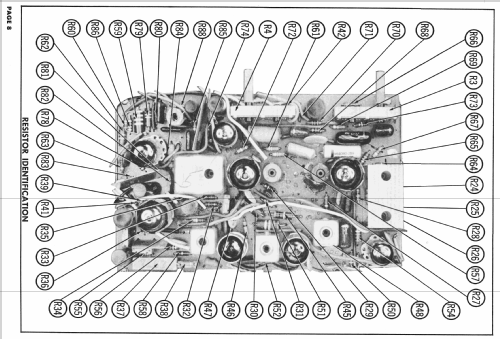

- Photofact Folder, Howard W. SAMS (Set 392 Folder 3 dated 3-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
