17T150 "Colby" Ch= KCS66C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 219110
-
- alternative name: RCA Manufacturing || Victor Talking Machine

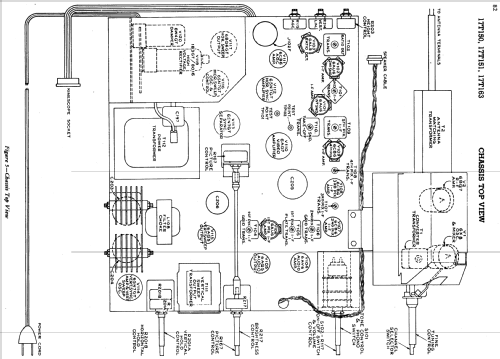

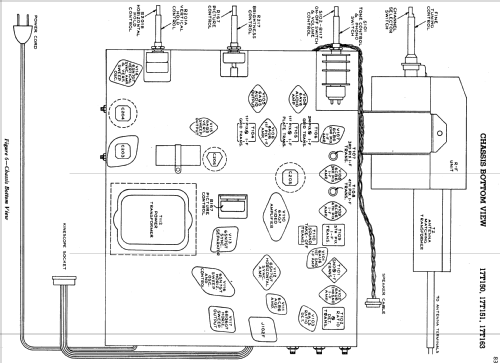

Picture from RCA Service Notes
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6AG7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 17QP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 17T150 "Colby" Ch= KCS66C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
The RCA 17T150 "Colby" is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS66C and picture tube 17QP4. Cabinet is metal with Mahogany finish. Has auxiliary audio input jack to permit use of external record player. Uses Qty(1) Elliptical PM 4" x 6" Speaker.
- Net weight (2.2 lb = 1 kg)
- 88 lb (88 lb 0 oz) / 39.952 kg
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 77)
- Literature/Schematics (2)

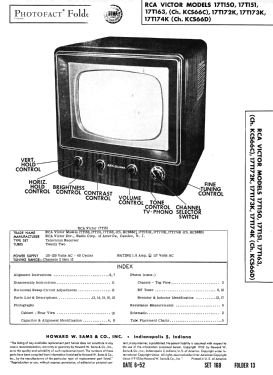

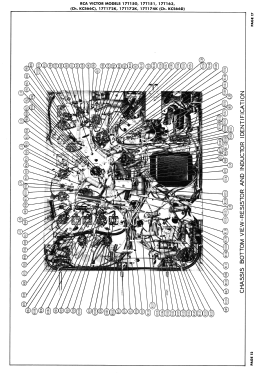

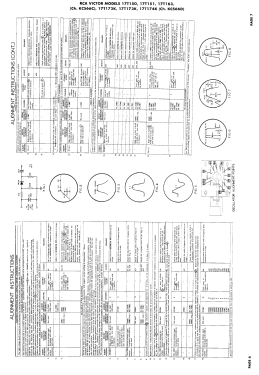

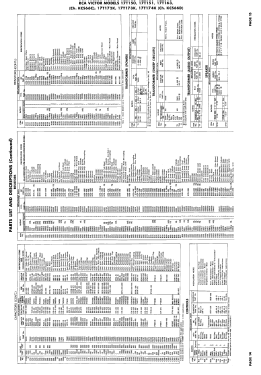

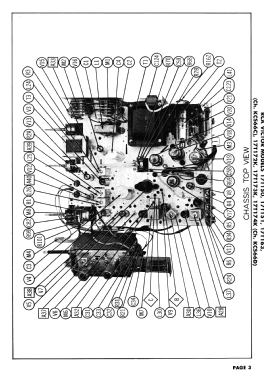

- Photofact Folder, Howard W. SAMS (Set 169, folder 13, dated 6-52)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
