Preston 17T155 Ch= KCS66

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1951/1952

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 148418

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6AG7 6CB6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1V2 1B3GT 17GP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Preston 17T155 Ch= KCS66 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

• RCA Victor model 17T155 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis KCS66, a VHF tuner and picture tube 17GP4. 190 W power consumption, features: "Golden Throat" & "Eye Witness Picture Synchronizer". Table model with optional matching consolette base. Phono jack for Victrola 45 attachment.

• Literature/Schematics (1)

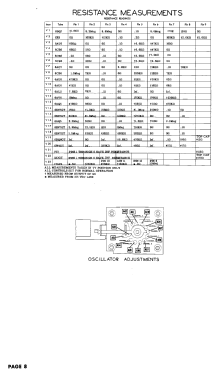

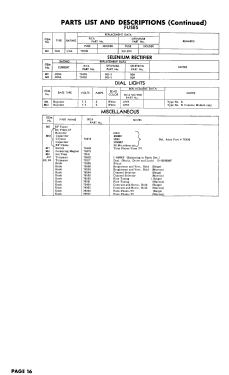

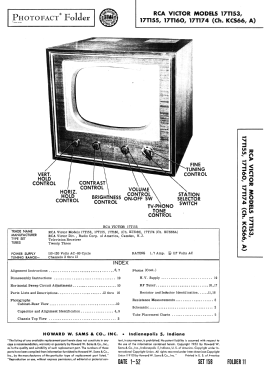

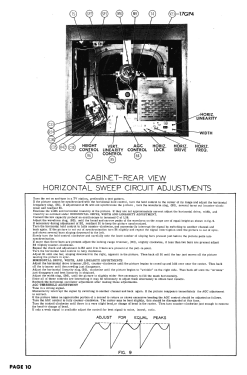

• Photofact Folder, Howard W. SAMS (Set 158, folder 11, dated 1-52)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
