17T163 "Crafton" Ch= KCS66C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 219112
-
- alternative name: RCA Manufacturing || Victor Talking Machine

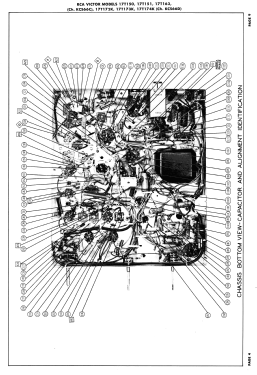

Picture from RCA Service Notes

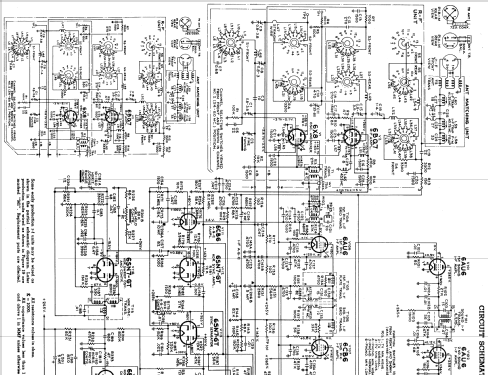

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6AG7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 17QP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17T163 "Crafton" Ch= KCS66C - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
The RCA 17T163 "Crafton" is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS66C and picture tube 17QP4. Cabinet was available in Limed Oak, Mahogany or Walnut. Has auxiliary audio input jack to permit use of external record player. Uses Qty(1) PM 8" Speaker.
- Net weight (2.2 lb = 1 kg)
- 95 lb (95 lb 0 oz) / 43.130 kg
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 77)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 169, folder 13, dated 6-52)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
