17T172K Ch= KCS66D

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 163962

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6AG7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 17QP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17T172K Ch= KCS66D - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Notes

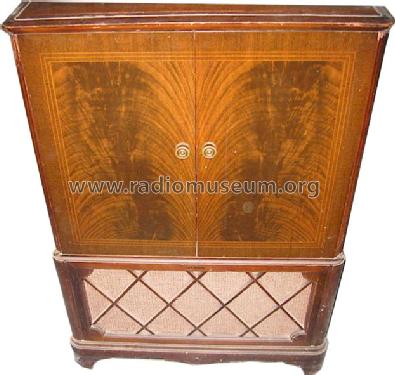

• RCA Victor model RCA 17T172K is a 17" b/w TV with US FCC standard VHF turret tuner, featuring: "Picture Power" and "Golden Throat", 190 W power consumption, full-length doors.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 169, folder 13, dated 6-52)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
