17T201 "Hadley" Ch= KCS72M2
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 218812
-
- alternative name: RCA Manufacturing || Victor Talking Machine

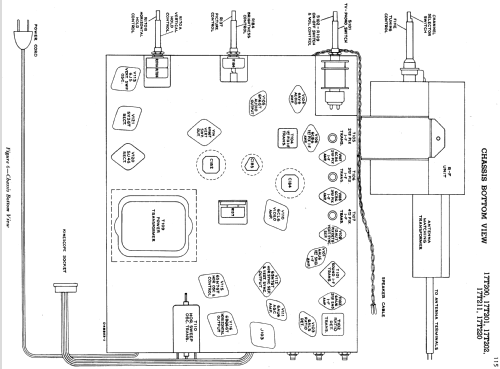

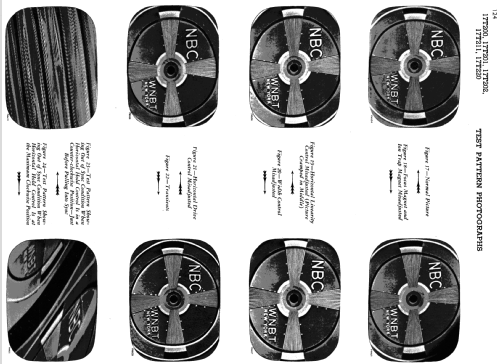

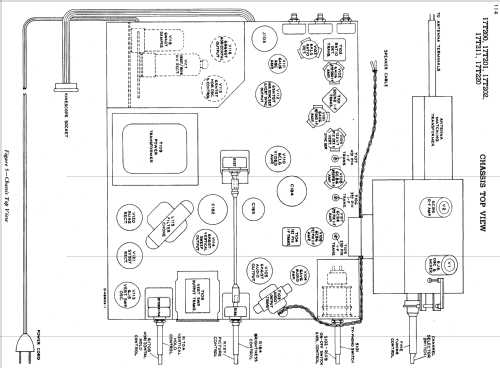

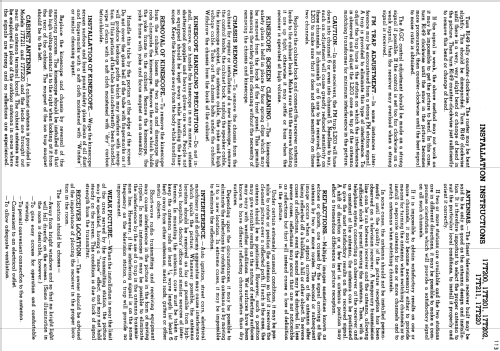

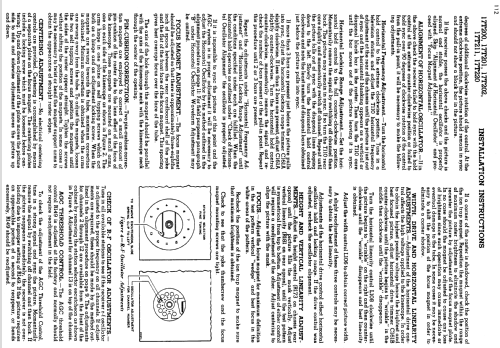

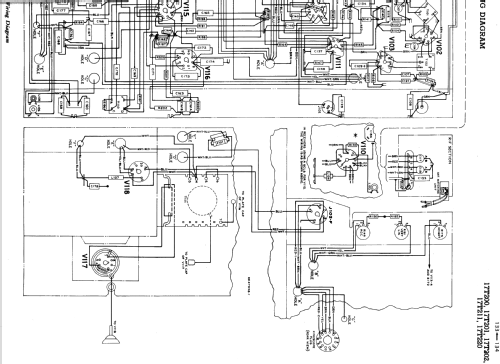

Picture from RCA Service Notes

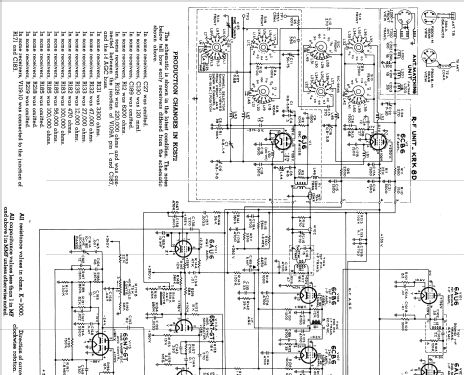

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6CB6 6J6 6CB6 6CB6 6CB6 12AU7 6CL6 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6SN7GT 6J5 6K6GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 5Y3GT 17QP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17T201 "Hadley" Ch= KCS72M2 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 21.5 x 22 x 21.37 inch / 546 x 559 x 543 mm
- Notes
- The RCA 17T201 "Hadley" is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS72M2 and picture tube 17QP4. Cabinet is Maroon. Has auxiliary audio input jack to permit use of external record player. Optional matching base was available.
- Net weight (2.2 lb = 1 kg)
- 88 lb (88 lb 0 oz) / 39.952 kg
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 109)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
