17T250DE "Brett" Ch= KCS74
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 219377
-
- alternative name: RCA Manufacturing || Victor Talking Machine

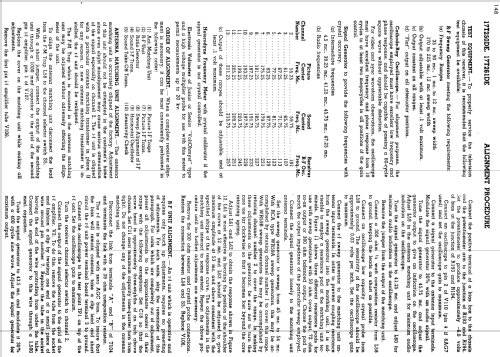

Picture from RCA Service Notes
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6CL6 6AU6 6AU6 6AL5 6AV6 6AQ5 6CB6 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1B3GT 17QP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17T250DE "Brett" Ch= KCS74 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 21.63 x 22.63 x 22.75 inch / 549 x 575 x 578 mm
- Notes
- The RCA 17T250DE "Brett" is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS74 and picture tube 17QP4. Cabinet is Mahogany or Walnut. Has auxiliary audio input jack to permit use of external record player. Optional base was available.
- Net weight (2.2 lb = 1 kg)
- 88 lb (88 lb 0 oz) / 39.952 kg
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 141)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
