18T Ch= RC-511
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53186
-
- alternative name: RCA Manufacturing || Victor Talking Machine

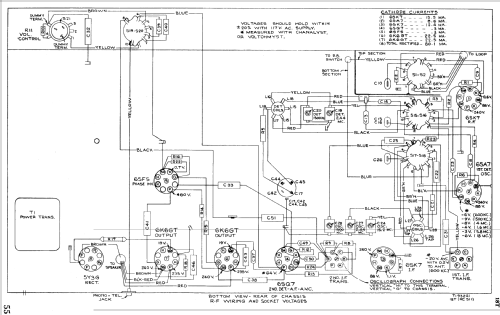

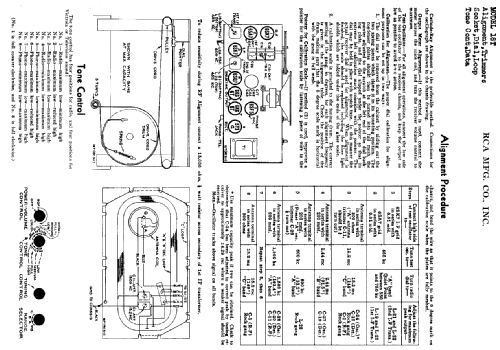

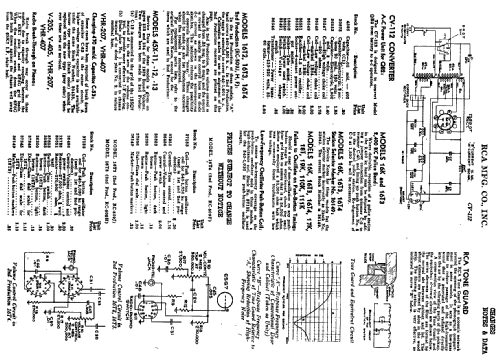

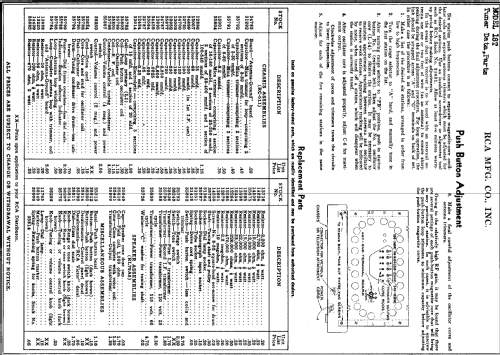

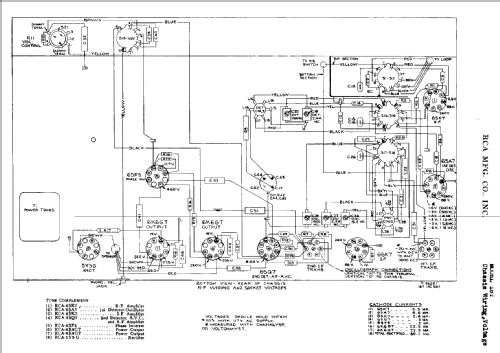

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 5 W (unknown quality)

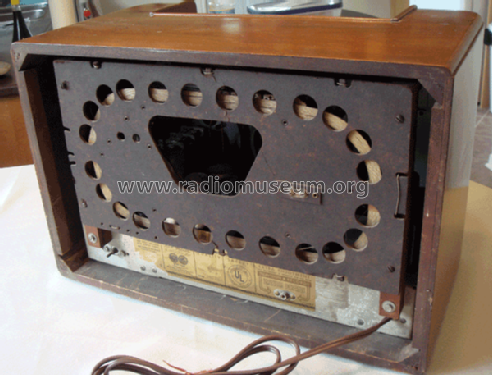

- Material
- Wooden case
- from Radiomuseum.org
- Model: 18T Ch= RC-511 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 18 x 11.75 x 10.375 inch / 457 x 298 x 264 mm
- Notes
-
Electronically identical to the Westinghouse WR290 model.
- Net weight (2.2 lb = 1 kg)
- 21.5 lb (21 lb 8 oz) / 9.761 kg
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Machine Age to Jet Age III
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
