• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85807

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12DT8 12BA6 12BA6 19T8 50C5

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 1-F-1 Ch= RC-1201A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 14 x 8 x 6 inch / 356 x 203 x 152 mm

• Notes

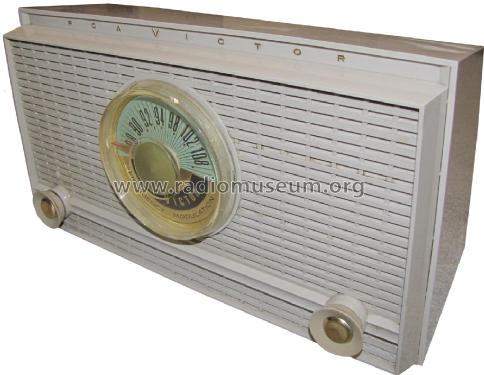

• RCA Victor 5-Tube Table Top FM Radio Model 1-F-1.
  Tuning Range: 88 - 108 MHz
  Power Consumption 35 Watts.


• Circuit diagram reference
• Beitman Radio Diagrams Vol. 21, 1961

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
