- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291195
-
- alternative name: RCA Manufacturing || Victor Talking Machine
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

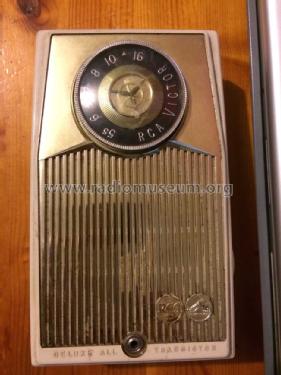

- Model: 1-T-1E - RCA RCA Victor Co. Inc.; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 4 x 7 x 2 inch / 102 x 178 x 51 mm
- Notes
-
There are three radios in RCA 1-T-1 series, differing only in color of cabinets: 1-T-1E (all white), 1-T-1LE (turquoise front / white back), and 1-T-1DJ (black front / white back).
- Mentioned in
- Bunis, Transistor Radios, 2nd ed., 1996, p.217
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 21, 1961 (pages 130-131)
- Author
- Model page created by Scott Wynn. See "Data change" for further contributors.
