• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139876

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2N544 2N412 2N410 2N410 2N408 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

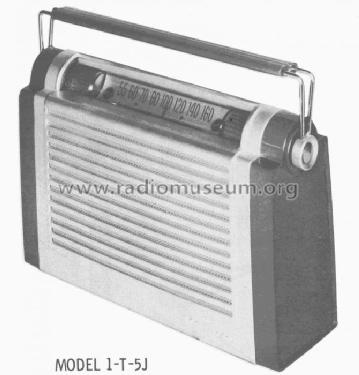

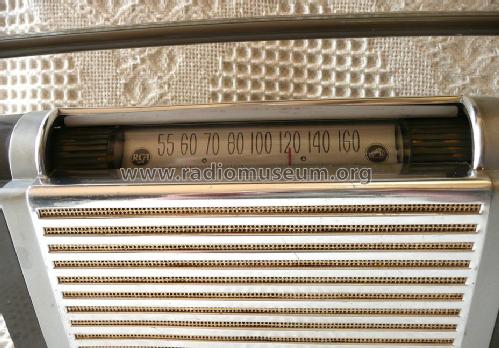

• Model: All Transistor Globe Trotter 1-T-5J - RCA RCA Victor Co. Inc.; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Battery operated transistorized portable AM receiver. Oval speaker 4" × 6". Sams photofact set 504 folder 18 date 10-60 features the RCA models 1-T-5J and 1-T-5L as the same schematic.

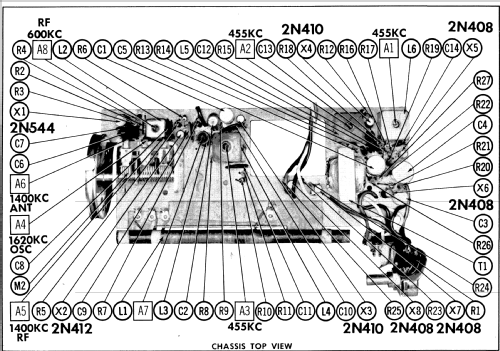

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 504 folder 18 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
