• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165969

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N412 2N410 2N410 2N408 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transicharg Deluxe 1BT36 Ch= RC-1187A - RCA RCA Victor Co. Inc.; New

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7.5 x 3.625 x 2 inch / 191 x 92 x 51 mm

• Notes

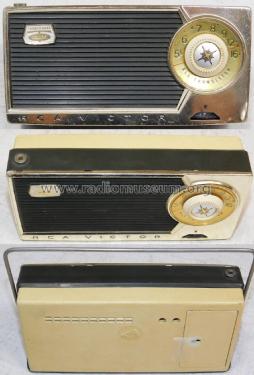

• The RCA Model 1BT36 is a Battery operated Transitorized Portable AM Receiver.

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 214)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
