• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149134

• • alternative name: RCA Manufacturing || Victor Talking Machine

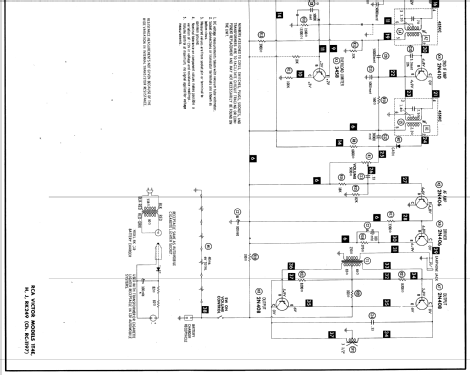

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2N412 2N410 2N410 2N410 2N406 2N406 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x AA 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

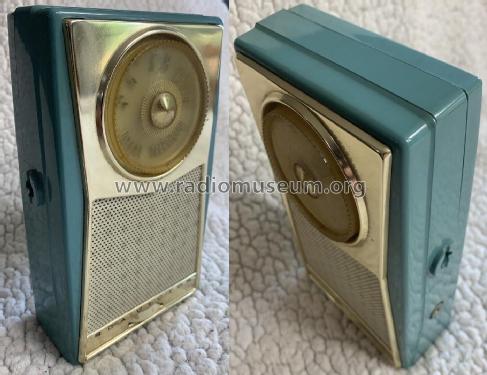

• Model: Deluxe Transistor 1T4H Ch= RC-1197 - RCA RCA Victor Co. Inc.; New

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Battery operated transistorized portable AM receiver. Sams photofact set 499 folder 11 date 9-60 features the RCA models 1T4E, 1T4H and 1T4J as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 499 folder 11 date 9-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
