211-CD-836U Ch= CTC10D
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1960/1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 243917
-
- alternative name: RCA Manufacturing || Victor Talking Machine

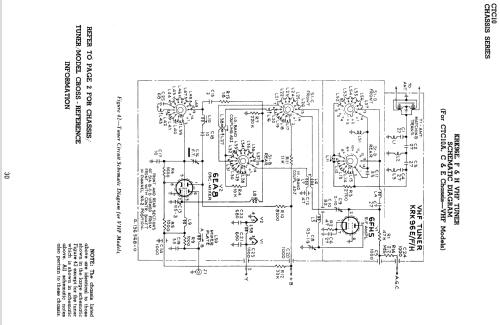

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6FH5 6EA8 6AF4A 6BZ6 6GM6 6AW8A 6AW8A 12BY7A 6EW6 6DT6A 6AQ5A 6EM7 6DT6A 6CG7 6DQ5 6AU4GTA 1V2 3A3 6BK4 6AU6 6EW6 12AZ7 6CG7 6CG7 6GH8 6AL5 21CYP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Power out
- 2.5 W (max.)
- from Radiomuseum.org
- Model: 211-CD-836U Ch= CTC10D - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
The RCA 211-CD-836U is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC10D, VHF tuner KRK97F, UHF tuner KRK66AA and picture tube 21CYP22A. Cabinet is Walnut.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- - - Manufacturers Literature (RCA Datasheet 1960 No. T5 First Edition dated 5-10-60)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
