21-CT-660U Haviland 21" Ch = CTC4

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 197829
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 25
  • Main principle
  • Superhet with RF-stage; ZF/IF 45750 4500 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-CT-660U Haviland 21" Ch = CTC4 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 32 x 26.5 x 28 inch / 813 x 673 x 711 mm
  • Notes

  • RCA introduced its third generation color TV sets using the CTC4 chassis and the new 21AXP22 21 inch color CRT in 1955. Five cabinet styles were available: the Haviland 21 tabletop set (model 21-CT-660U) in mahogany or blond finish, the Seville 21 console (model 21-CT-661U) with mahogany or blond, the Director 21 console (model 21-CT-662U) in mahogany or blond, the Cheltenham 21 console with doors (model 21-CT-663U) in mahogany or birch, and the Gainsborough 21 French Provincial console with doors (model 21-CT-664U) in walnut or maple. The latter three models have twin 8 inch speakers.

    Equipped with VHF-Tuner KRK-35.

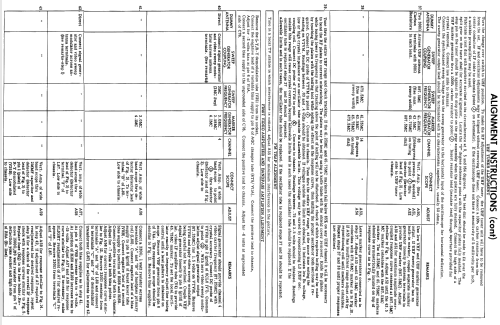

  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
  • Literature/Schematics (1)
  • Sams Photofact set 314 folder 9
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
