21-S-522U "Benson" Ch= KCS88J

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1955
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 242873
    • alternative name: RCA Manufacturing || Victor Talking Machine

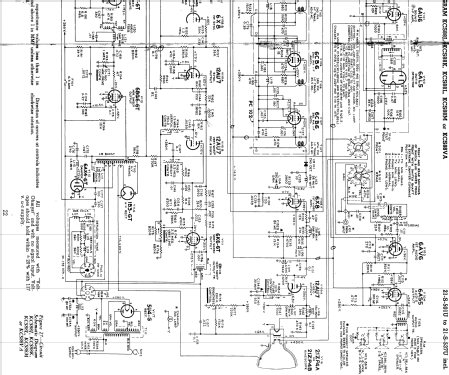

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 inch = 20.3 cm
  • Power out
  • 1.5 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-S-522U "Benson" Ch= KCS88J - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes

  • The RCA 21-S-522U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 to 83 UHF. Equipped with chassis KCS88J, tuner KRK30 and picture tube 21ZP4B. Uses Qty(1) PM 8" speaker. Has auxiliary audio input jack to permit use of an external record playing attachment. Cabinet color is Blonde Tropical Hardwood.

  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature (RCA Datasheet 1954 No. T4 Dated 5-29-54)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
