21-S-6052U Ch= KCS-95B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 303641
-
- alternative name: RCA Manufacturing || Victor Talking Machine

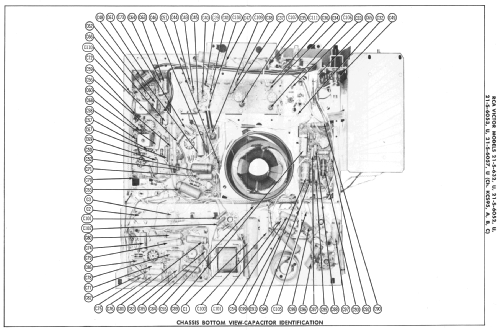

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 4BQ7A 2AF4 5X8 3CF6 3CB6 5AS8 6AW8 5U8 3AL5 5AQ5 6CG7 5AQ5 6CG7 12BQ6GTB or 12CU6 12AX4GTA 1X2B 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21-S-6052U Ch= KCS-95B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA Victor model 21-S-6052U is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis KCS-95B, VHF tuner KRK33B, -UHF tuner KRK33C and picture tube 21ALP4A.
