21-T-242 "Westland" Ch= KCS72D-1, RC-1117B

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 137934
    • alternative name: RCA Manufacturing || Victor Talking Machine

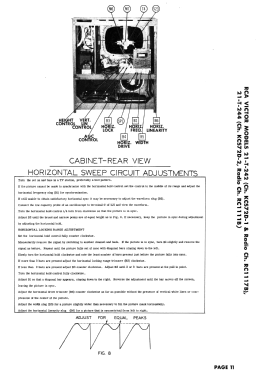

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 28
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 2.4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-T-242 "Westland" Ch= KCS72D-1, RC-1117B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes
  • The RCA 21T242 "Westland" is a combination 21" b/w Television, AM receiver, 3 speed Record Changer and Speaker. The TV is equipped with US standard VHF tuner channels 2 thru 13 and has 21AP4 picture tube. Uses TV chassis KCS72D-1, AM radio chassis RC-1117B and Record Changer 930409-5 or 930409-10. TV output power 4W max, radio output power 2.4W max. AM IF =455kHz. Cabinet is Blonde or Mahogany.
  • Net weight (2.2 lb = 1 kg)
  • 163 lb (163 lb 0 oz) / 74.002 kg
  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
