21-T-244 "Penfield" Ch= KCS72D-2, RC-1111B, RS-141C

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 137935
    • alternative name: RCA Manufacturing || Victor Talking Machine

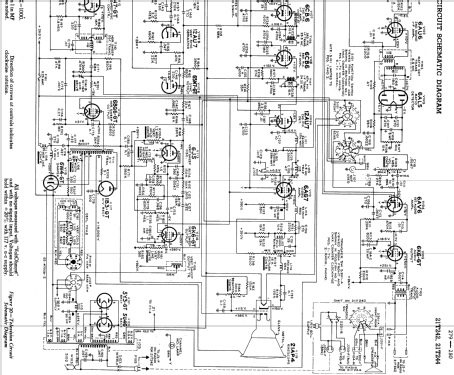

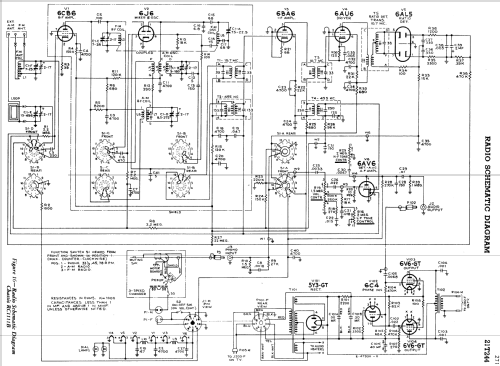

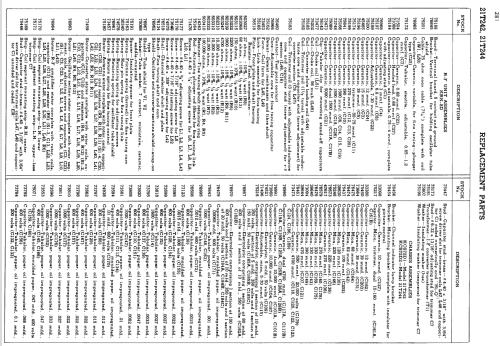

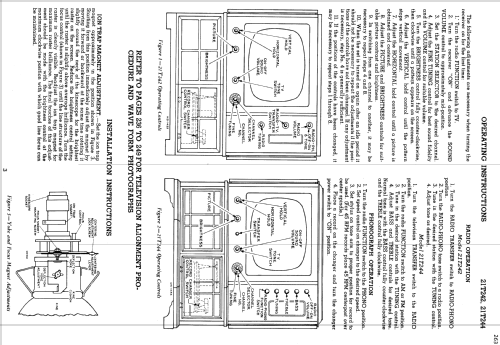

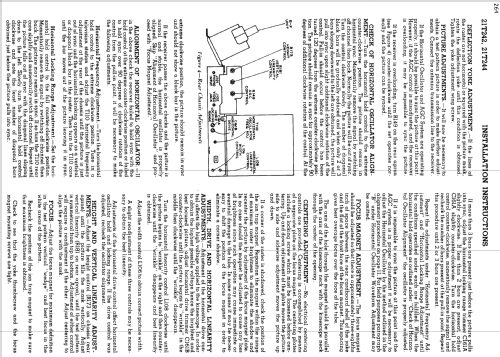

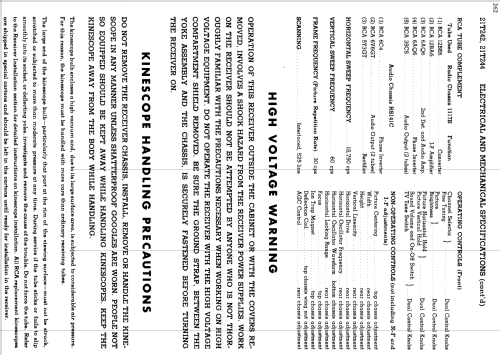

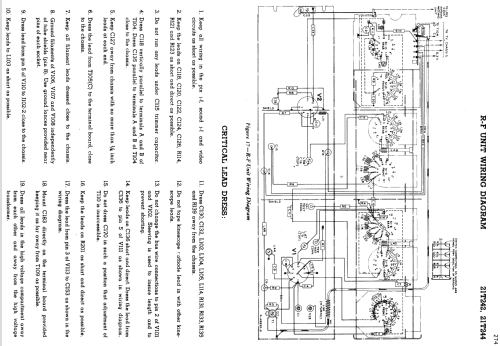

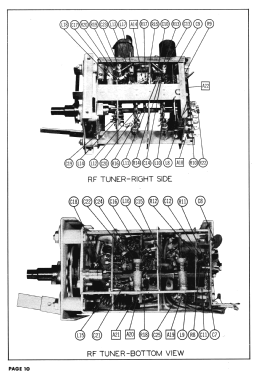

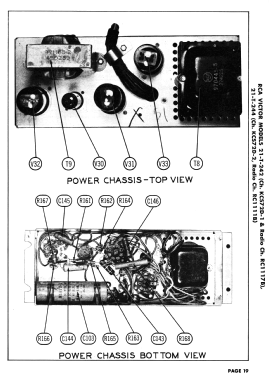

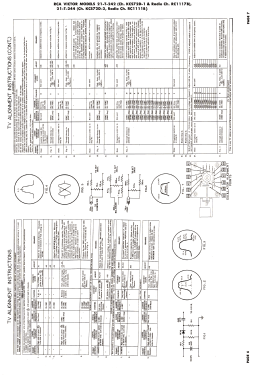

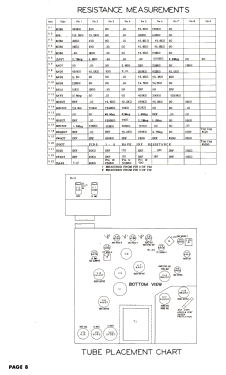

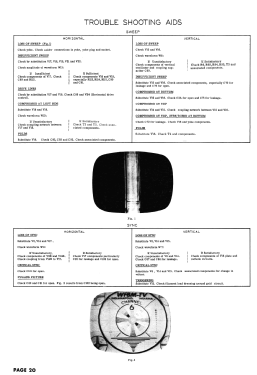

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 32
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-T-244 "Penfield" Ch= KCS72D-2, RC-1111B, RS-141C - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes
  • The RCA 21T244 "Penfield" is a combination 21" b/w Television, AM/FM receiver, 3 speed Record Changer and Speaker. The TV is equipped with US standard VHF tuner channels 2 thru 13 and has 21AP4 picture tube. Uses TV chassis KCS72D-2, AM/FM radio chassis RC-1111B, Audio Amplifier chassis RS-141C and Record Changer 930409-5. TV output power 4W max, radio output power 10W max. AM IF =455kHz. FM IF=10.7MHz. Cabinet is Mahogany.
  • Net weight (2.2 lb = 1 kg)
  • 186 lb (186 lb 0 oz) / 84.444 kg
  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
