21-T-6117U Ch= KCS96C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 333654
-
- alternative name: RCA Manufacturing || Victor Talking Machine

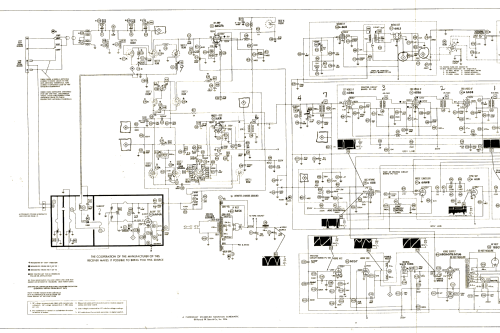

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6AF4A 6BQ7A 6X8 6DE6 6DE6 6AS8 6AW8 6AQ5 6U8 6U8 6AL5 6AQ5 6CG7 6AQ5 6CG7 6BQ6GTB or 6CU6 6AX4GT 1B3GT 5AS4 21ACP4A
- Main principle
- Superhet with RF-stage
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 21-T-6117U Ch= KCS96C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA Victor model 21-T-6117U is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis KCS96C, VHF- UHF tuner KRK30F and picture tube 21ACP4A.
- Literature/Schematics (1)

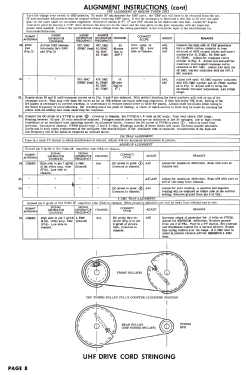

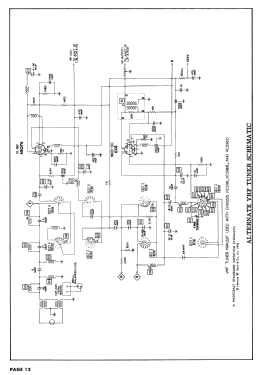

- Photofact Folder, Howard W. SAMS (Set 303 Folder 17-S dated 1-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 308 Folder 10 dated 3-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
