21-T-6127U Ch= KCS97A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 293793
-
- alternative name: RCA Manufacturing || Victor Talking Machine

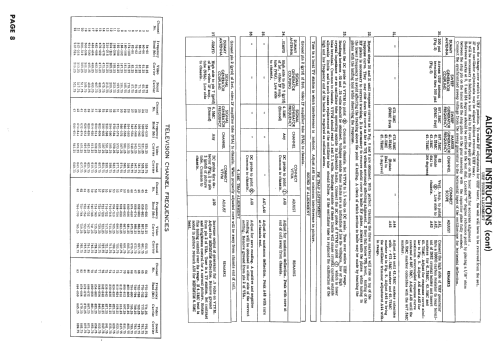

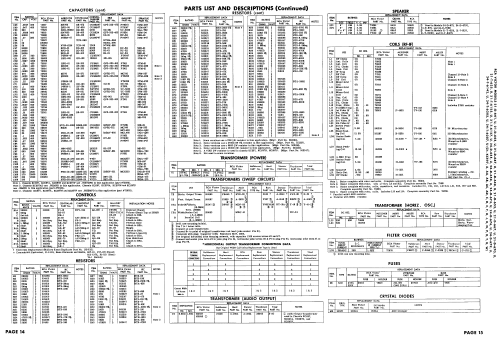

Picture from service manual.

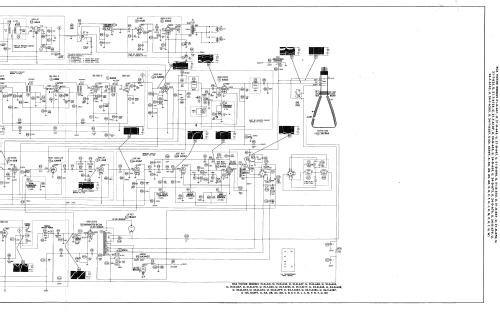

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6X8 6AF4 or 6AF4A 6DE6 6DE6 6AS8 6AW8 6AQ5 6U8 6U8 6AL5 6AQ5 6CG7 6AQ5 6CG7 6BQ6GTB or 6CU6 6AX4GT 1B3GT 5AS4 21AMP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21-T-6127U Ch= KCS97A - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
THE RCA VICTOR Model 21-T-6127U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF Tuner KRK29N, UHF Tuner KRK36, chassis KCS97A and picture tube 21AMP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 312 Folder 10 dated 4-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
