21-T-7153 Ch= KCS98A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 269741
-
- alternative name: RCA Manufacturing || Victor Talking Machine

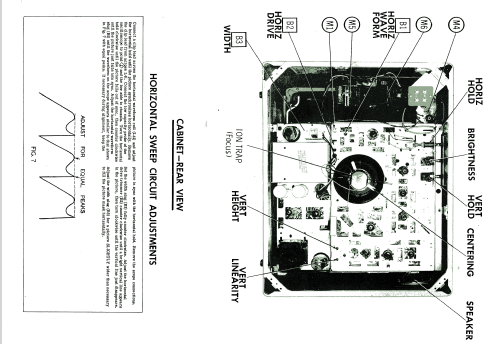

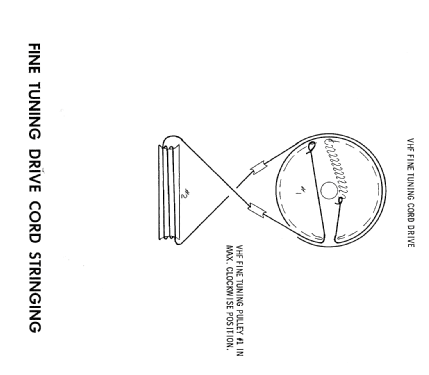

Picture from service manual.

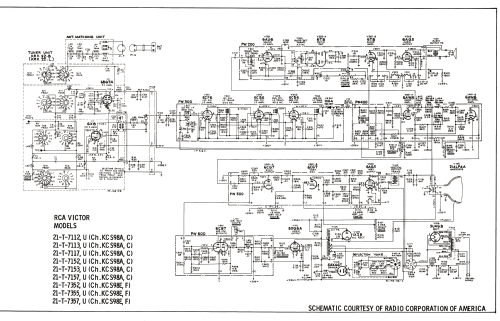

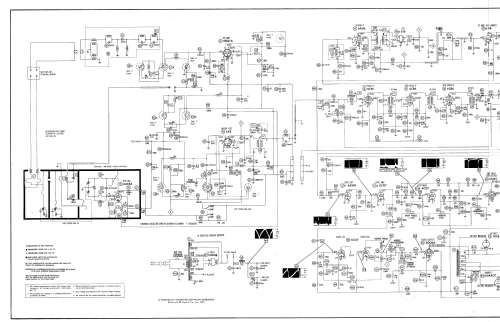

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6X8 6CF6 6CB6 6CB6 6AW8 6AU6 6T8 6AQ5 6CG7 6AQ5 6CG7 6DQ6A 6AX4GT 1X2B 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 21-T-7153 Ch= KCS98A - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA VICTOR Model 21-T-7153 is an 21" b/w TV with US FCC standard VHF tuner with channels 2 thru 13 .Equipped with chassis KCS98A and picture tube 21ALP4A.
- Literature/Schematics (1)

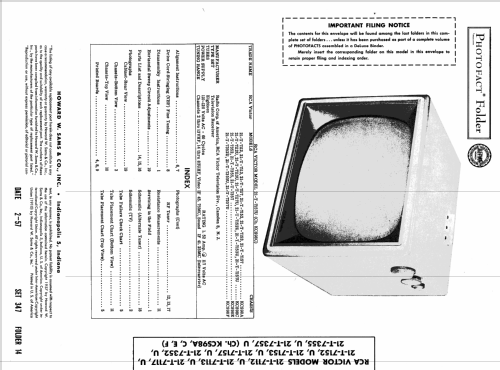

- Photofact Folder, Howard W. SAMS (Set 347 Folder 14 Date 2-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 332 Folder 14-S dated 10-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
