21-T-7352U Ch= KCS98F
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 269781
-
- alternative name: RCA Manufacturing || Victor Talking Machine

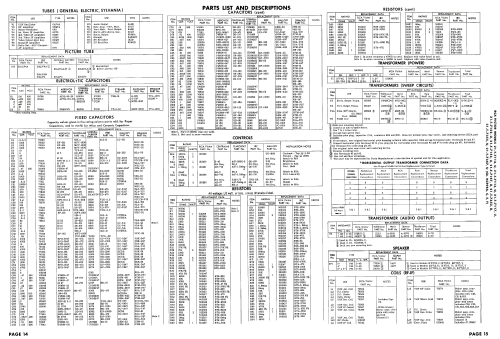

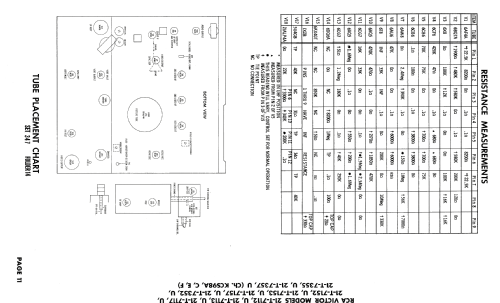

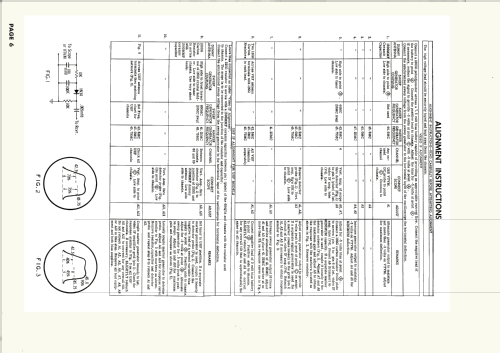

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6AF4A 6BQ7A 6X8 6CF6 6CB6 6CB6 6AW8 6AU6 6T8 6AQ5 6CG7 6AQ5 6CG7 6DQ6A 6AX4GT 1X2B 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: 21-T-7352U Ch= KCS98F - RCA RCA Victor Co. Inc.; New
- Notes
-
The RCA VICTOR model 21-T-7352U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis KCS98F and picture tube 21ALP4A.Speaker size: 6x9 inch.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 347 Folder 14 Date 2-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 332 Folder 14-S dated 10-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
