21-CD-8777U Ch= CTC7B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 195592
-
- alternative name: RCA Manufacturing || Victor Talking Machine

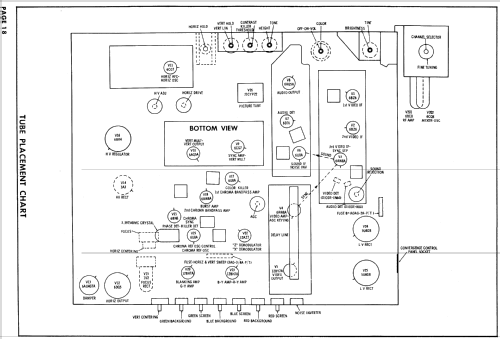

Picture from RCA Datasheet

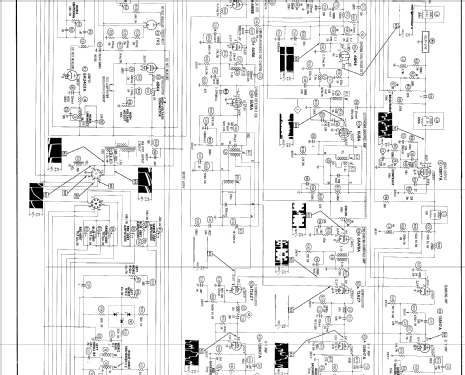

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6BC8 6CQ8 6AF4A 6BZ6 6BZ6 6AW8A 6AW8A 12BY7A 6U8A 6DT6 6AQ5A 6CG7 6AQ5A 6CG7 6DQ5 6AU4GTA 1V2 3A3 6BK4 6U8A 6AW8A 12AZ7 12BH7A 12BH7A 6U8A 6BN8 5U4GB 5U4GB 21CYP22
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 115V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21-CD-8777U Ch= CTC7B - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
The RCA 21-CD-8777U is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC7B, tuner KRK49A and picture tube 21CYP22. Uses Qty(1) Elliptical PM 3.5" x 14" speaker. Cabinet is masonite oak grain.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-58, Set 399, Folder 3)
- Literature/Schematics (2)
- - - Manufacturers Literature (RCA Datasheet 1957 No. T9 Dated 8-21-57)
- Literature/Schematics (3)
- Photofact CB Radio Manual, SAMS (Set 379 Folder 15-S dated 11-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
