21DF8649U Ch= KCS108L & CTP5C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183723
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6AF4A 6BQ7A 6CQ8 6DE6 6DE6 6CB6 6AW8A 6AQ5A 6U8A 6AU6 6T8 6CG7 6CZ5 6CG7 6DQ6A 6AU4GTA 1B3GT or 1B3GT 5AS4A 21CEP4
- Number of Transistors
- 1
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21DF8649U Ch= KCS108L & CTP5C - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

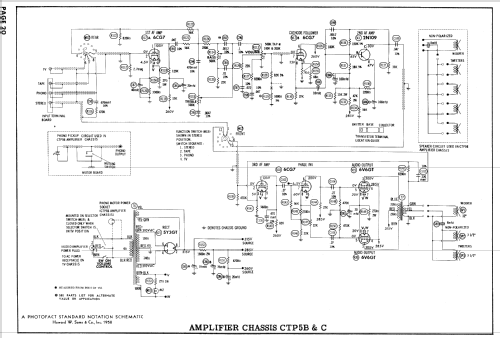

RCA model 21DF8649U is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis KCS108K, L & CTP5C, VHF-UHF tuner KRK47E and picture tube 21CEP4.Chassis CTP5C is an Audio Amplifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-58, Set 403, Folder 3)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 387 Folder 15-S dated 2-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
