21RD8525 Ch= KCS108H
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 322659
-
- alternative name: RCA Manufacturing || Victor Talking Machine

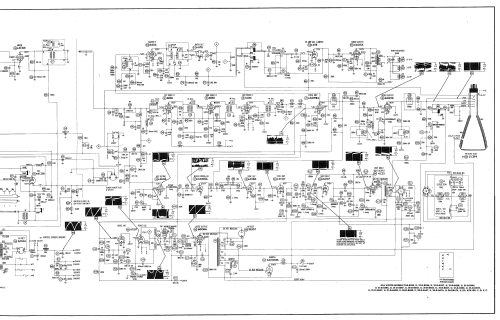

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BQ7A 6CQ8 6AU6 6T8 6AQ5 6DE6 6DE6 6CB6 6AW8A 6AQ5A 6U8A 6CG7 6CZ5 6CG7 6DQ6A 1G3GT or 1B3GT 6AU4GT 5AS4A 21CEP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21RD8525 Ch= KCS108H - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
RCA model 21RD8525 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS108H, VHF tuner KRK62-M/P (KRK46-E) and picture tube 21CEP4.
- Literature/Schematics (1)

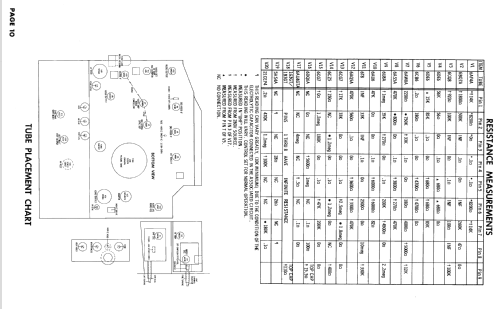

- Photofact Folder, Howard W. SAMS (Set 390 Folder 2 dated 3-58)
