21RT9637U Ch= KCS83A & KCS84A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 190333
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 21CEP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 21RT9637U Ch= KCS83A & KCS84A - RCA RCA Victor Co. Inc.; New
- Notes
- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 19.
Remote Receiver: KCS83A; Remote Transmitter KCS84A.
- Literature/Schematics (1)

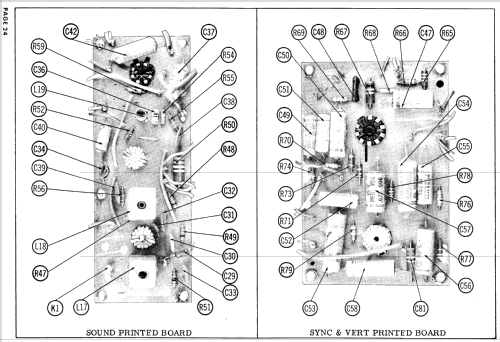

- Photofact Folder, Howard W. SAMS (Date 1-59, Set 428, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
