21T159DE "Selfridge" Ch= KCS68F
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 219128
-
- alternative name: RCA Manufacturing || Victor Talking Machine

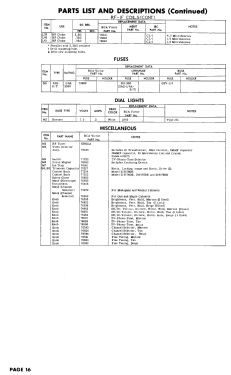

Picture from RCA Service Notes
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Valves / Tubes
- 6BQ7 6X8 6AU6 6CB6 6CB6 6CB6 6AG7 6AU6 6AU6 6AL5 6AV6 6AQ5 6CB6 6SN7GT 6SN7GT 6AQ5 6SN7GT 6SN7GT 6CD6G 6W4GT 6W4GT 1B3GT 5U4G 5U4G 21AP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21T159DE "Selfridge" Ch= KCS68F - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
- The RCA 21T159DE "Selfridge" is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS68F, RF Unit KRK-11A and picture tube 21AP4. Cabinet available in Blonde Oak, Mahogany or Walnut. Has auxiliary audio input jack to permit use of external record player. Uses Qty(1) PM 8" Speaker.
- Net weight (2.2 lb = 1 kg)
- 104 lb (104 lb 0 oz) / 47.216 kg
- Literature/Schematics (1)
- - - Manufacturers Literature (Volume VIII 1952, Page 173)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
