• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 182811

• • alternative name: RCA Manufacturing || Victor Talking Machine

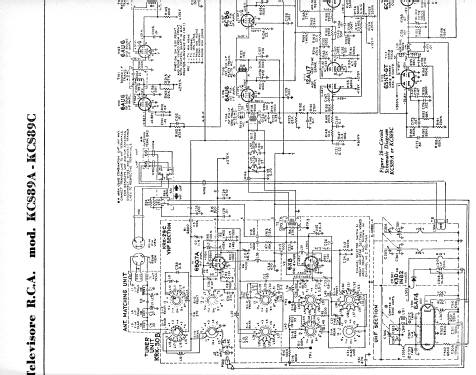

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 24-D-544 U Ch= KCS89A,B,C - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• RCA Victor 24-D-544 U, Ch= KCS89 Suffix A, B or C;
  ~24" b/w TV with US standard VHF tuner, suffix U indicates UHF tuner.

• Mentioned in
• Photofact Folder, Howard W. SAMS

• Author
• Model page created by a member from A. See "Data change" for further contributors.
