24T8327 Ch= KCS113M
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 325712
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6CQ8 6AU6 6DT6 6DS5 6CF6 6CB6 6CB6 6AW8A 6CG7 6CZ5 6CG7 6DQ6A 1X2B 6AU4GTA 5U4GB 24AHP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 24T8327 Ch= KCS113M - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA model 24T8327 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis KCS113M, VHF tuner KRK46C and picture tube 24AHP4.
- Literature/Schematics (1)

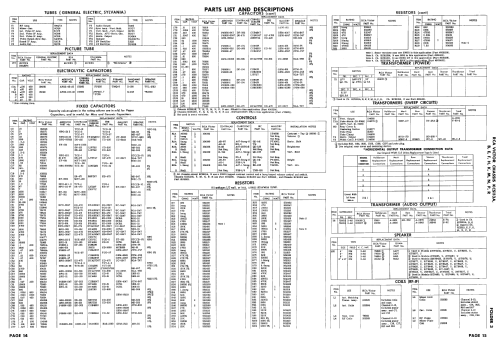

- Photofact Folder, Howard W. SAMS (Set 398 Folder 3 dated 5-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
