• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53338

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SG7 6SA7 6SK7 6SQ7 6SQ7 25L6GT 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 inch = 22.9 cm

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

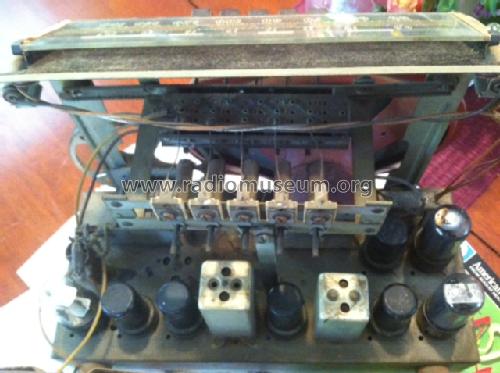

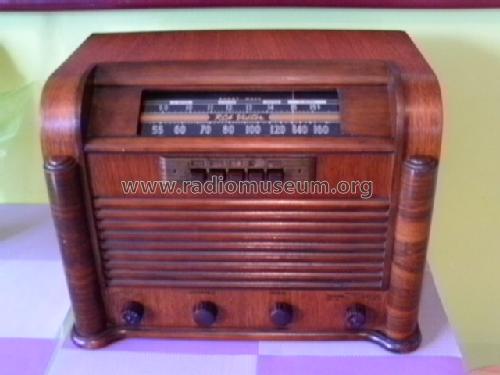

• Model: 28X5 Ch= RC-1002-A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.5 x 12.5 x 10 inch / 419 x 318 x 254 mm

• Notes
• Dial lamps: 2 Mazda Nº 44, 6.3V, 0.25A.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• RCA Victor Instruments Service Notes 1941-1942

• Literature/Schematics (2)

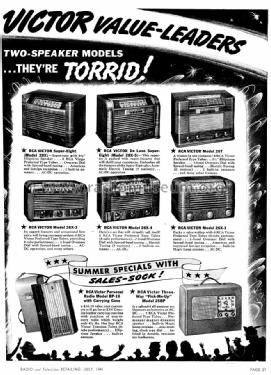

• Radio Retailing (Radio & Television R.) (July 1941.)

• Literature/Schematics (3)
• Machine Age to Jet Age II (page 235.)
