2T60 "Cumberland" Ch= KCS45A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950/1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 231260
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Picture from RCA Databook

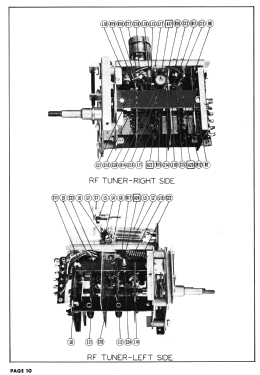

Picture from service manual.

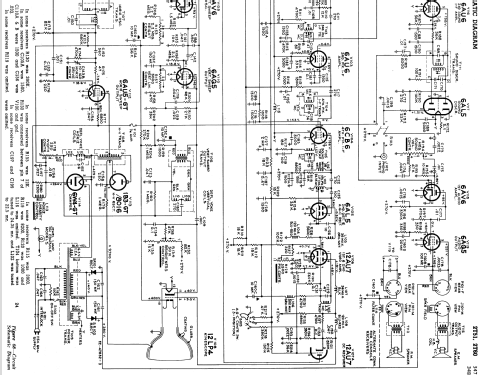

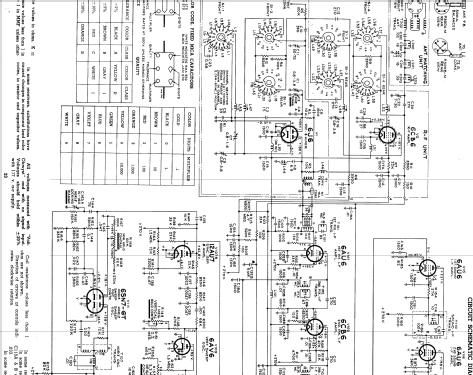

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6CB6 6J6 6AU6 6AU6 6AL5 6AV6 6AQ5 6AU6 6CB6 6AU6 6CB6 6AL5 12AU7 12AU7 6AV6 6AQ5 6SN7GT 6AU5GT 6W4GT 1B3GT or 8016 12LP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 115V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2T60 "Cumberland" Ch= KCS45A - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 21 x 34.25 x 21 inch / 533 x 870 x 533 mm
- Notes
-
The RCA 2T60 is a 12" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 12LP4. Has Qty(1) PM 8" speaker. Cabinet color is Walnut, Mahogany or Oak.
- Net weight (2.2 lb = 1 kg)
- 81 lb (81 lb 0 oz) / 36.774 kg
- Literature/Schematics (1)

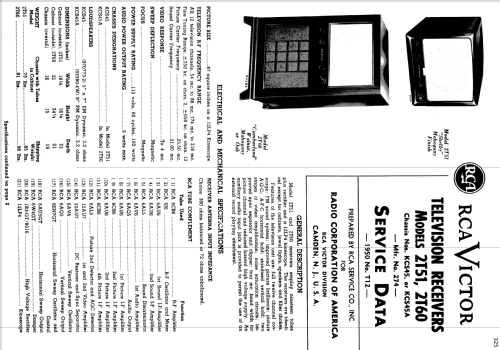

- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 325-352)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 111, Folder 11 dated 11-50)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
