3-VC-35 Ch= RS-175C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1962 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 90213
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 3-VC-35 Ch= RS-175C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
- Record Changer RP-216-B2
Speakers: 2 x 6.5" PM

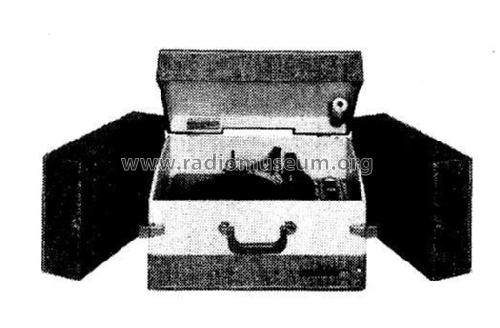

The RCA Modell 3VC35 is an AC Operated 3 Tube Stereo Amplifier with 4 Speed Automatic Record Changer.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-63, Set 646, Folder 8)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
