• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83306

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT or 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

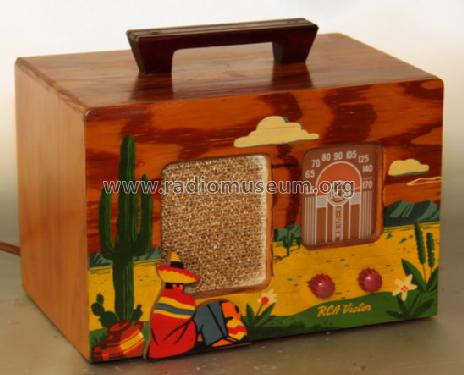

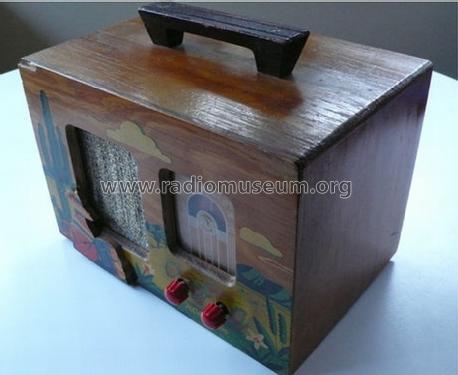

• Model: 40X53 La Siesta Ch= RC-436 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 225 x 160 x 150 mm / 8.9 x 6.3 x 5.9 inch

• Notes
• Model "La Siesta".

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 16.95 USD

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 133.)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
