45-EY-1 Ch= RS-132F
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1950/1951
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 82613
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Beitman

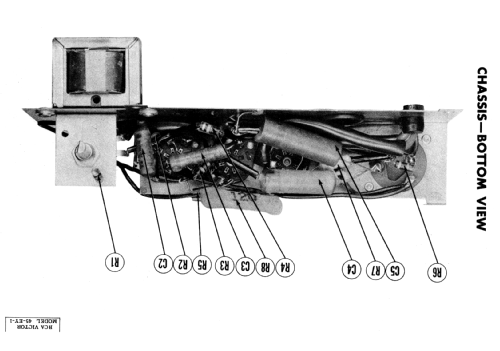

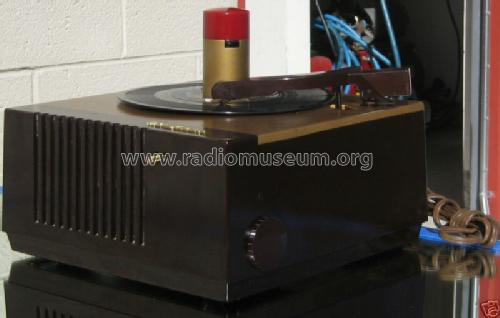

With courtesy by Ebayseller wjpll
With courtesy by Ebayseller wjpll
With courtesy by Ebayseller wjpll
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (1.25 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 45-EY-1 Ch= RS-132F - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9.75 x 7.625 x 9.625 inch / 248 x 194 x 244 mm
- Notes
-
The RCA 45-EY-1 is an AC operated 3 tube phonograph with mono amplifier and speaker. The turntable is a 45 RPM, model RP-168, which holds up to ten 7 inch fine groove records. Uses crystal pickup 74067 with medium output voltage.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Date 6-1951, Set 135, Folder 11)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 11, 1951 (Page 105)
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 73-76)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
- Other Models
-
Here you find 5133 models, 3236 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
