• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91631

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2N1526 2N1524 2N1524 2N2614 2N406 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Batteries / addl. power jack / 4 x AA 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

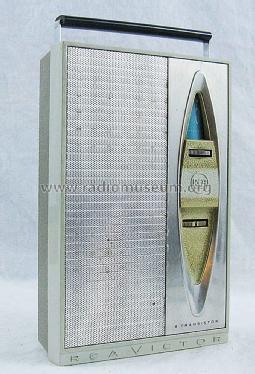

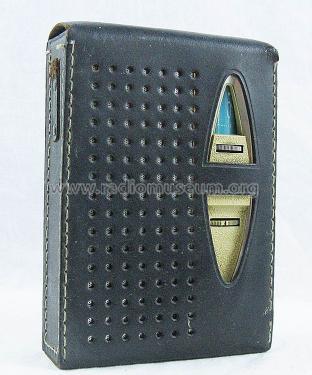

• Model: 4RG56 Ch= RC-1214A - RCA RCA Victor Co. Inc.; New

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 4.125 x 6.5 x 1.5 inch / 105 x 165 x 38 mm

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Mentioned in
• Bunis, Transistor Radios, 2nd ed.,1996, p. 218

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
