- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 18901
-
- alternative name: RCA Manufacturing || Victor Talking Machine

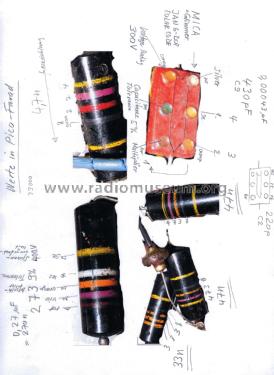

Color Codes
Imagen cedida por Francisco Aragón
Click on the schematic thumbnail to request the schematic as a free document.

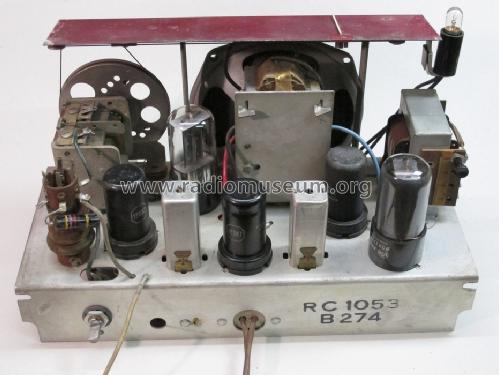

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110-220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 13 cm = 5.1 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 5Q21 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 185 x 155 mm / 11.4 x 7.3 x 6.1 inch
- Price in first year of sale
- 245.00 SFR
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
