• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53575

• • alternative name: RCA Manufacturing || Victor Talking Machine

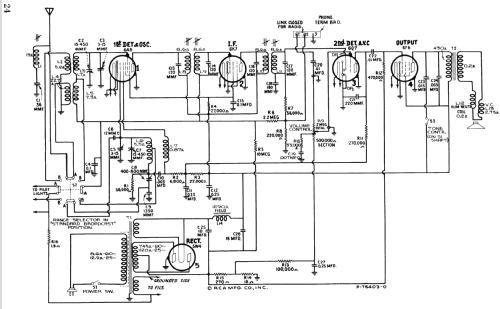

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 5W4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

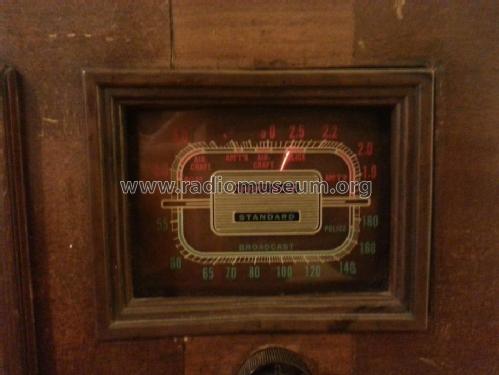

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5T6 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.75 x 10 x 7.75 inch / 425 x 254 x 197 mm

• Notes

• Identical to RCA 5T7 except for case color and also has the same schematic as RCA 5T8.

• Net weight (2.2 lb = 1 kg)
• 16 lb 13 oz (16.813 lb) / 7.633 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Machine Age to Jet Age III

• Literature/Schematics (2)
• RCA Victor Service Notes for 1937 (RCA Red Book 1937)

• Literature/Schematics (3)
• Beitman Radio Diagrams, Vol. 01, 1926-1938 (page 158)
