66X1 Ch= RC-1038 is walnut

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53643

• • alternative name: RCA Manufacturing || Victor Talking Machine

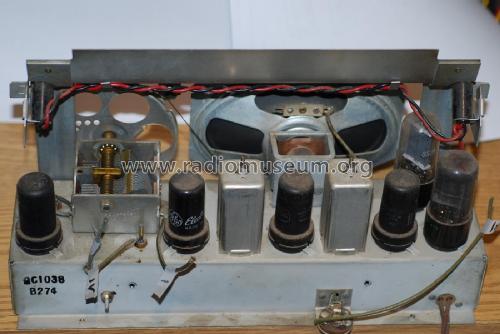

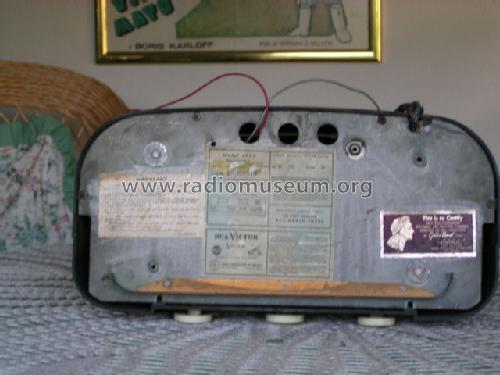

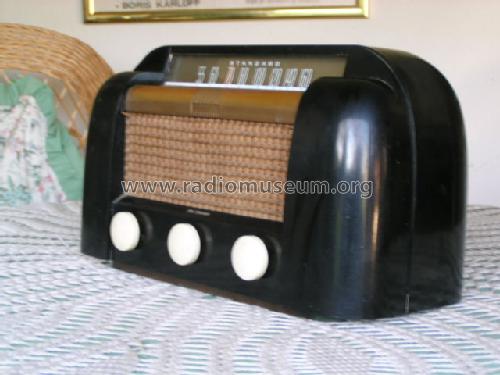

• Picture

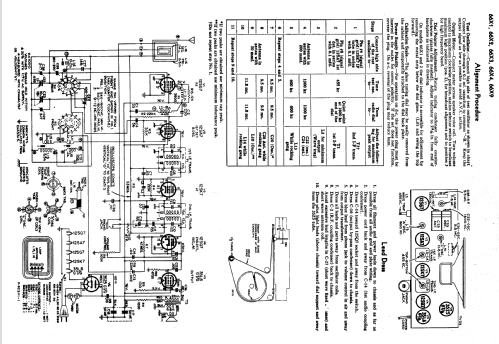

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SG7 12SA7 12SK7 12SQ7 35L6G 35Z5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 66X1 Ch= RC-1038 [is walnut] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 15 x 8.5 x 7.5 inch / 381 x 216 x 191 mm

• Notes
• Brown plastic. Pilot lamp: Mazda Nº 1490, 3.2 V.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• RCA Victor Instruments Service Notes 1946

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (February 1947 page 41.)

• Literature/Schematics (3)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 87)
