• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53666

• • alternative name: RCA Manufacturing || Victor Talking Machine

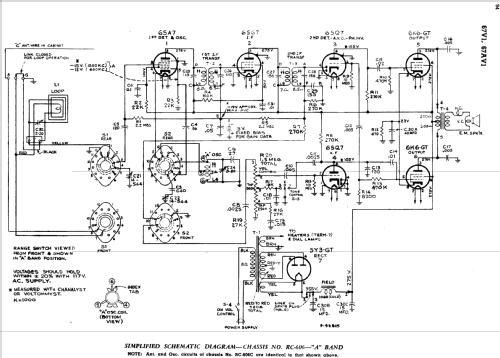

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SG7 6SQ7 6SQ7 6K6GT 6K6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 6.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 67AV1 Ch= RC-606 - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 31 x 34 x 16.3 inch / 787 x 864 x 414 mm

• Notes
• See als Photofact Folders, Sams; Set 9, Folder 469-27. Uses automatic record changer 960260-1.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 07, 1947

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
