• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81971

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1U5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110-120 / 67.5 & 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

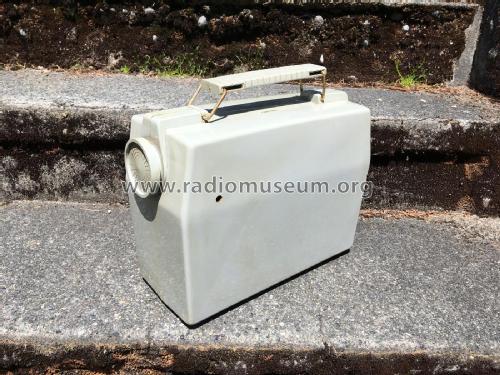

• Model: 6-BX-8A Ch=RC-1126A - RCA RCA Victor Co. Inc.; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 9 x 5 inch / 305 x 229 x 127 mm

• Price in first year of sale
• 39.95 USD

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 227, Folder 11)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
