• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1955 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 81962

• • alternative name: RCA Manufacturing || Victor Talking Machine

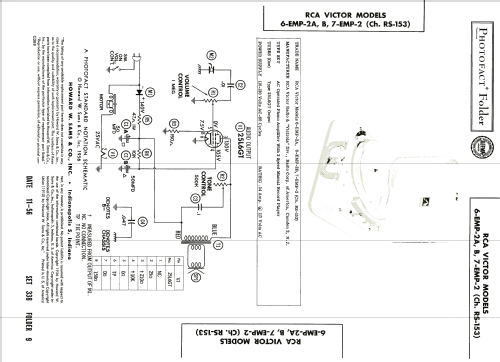

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25L6GT

• Main principle
• Audio-Amplification

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6-EMP-2A Ch=RS-153 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

• AC Operated Phono Amplifier With 3 Speed Manual Record Player. Selenium Rectifier.





• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 338 Folder 9 date 11-56)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
