6-EY-2 Ch= RS-136J
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 81951
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Service Doku
RCA Victor Print Ad
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6-EY-2 Ch= RS-136J - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC Operated Phono Amplifier with 45RPM Automatic Record Changer.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Literature/Schematics (1)

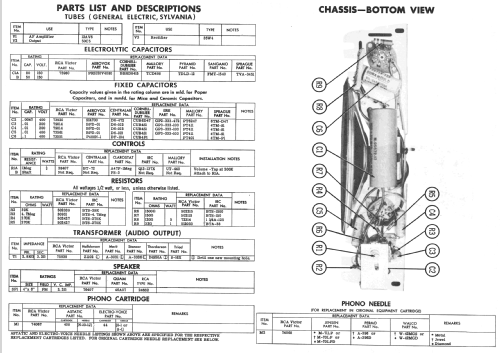

- Photofact Folder, Howard W. SAMS (Set 328 Folder 10 dated 9-56)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
